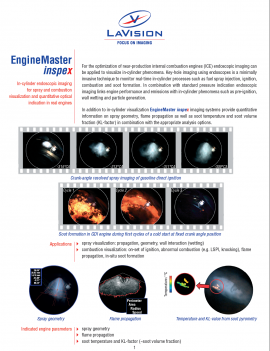

EngineMaster inspex: Endoscopic IC-Imaging with Quantitative Analysis

LaVision’s EngineMaster inspexsystems provide line-of-sight turnkey imaging solutions for in-cylinder spray and combustion visualization. The systems include all necessary components: high resolution digital color camera with imaging endoscope, endoscopic spray and background contour illumination, engine sealing inserts, synchronization electronics and software for recording and visualization.
In combination with standard pressure indication endoscopic imaging links engine performance and emissions with in-cylinder phenomena such as pre-ignition, wall wetting and soot generation.

Applications

spray propagation, geometry, wall interaction (wetting)
on-set of ignition, misfire, flame propagation
in-situ soot formation and soot temperature

System Features

direct visualization of complete IC-engine cycles
indicated engine parameters: flame speed, soot concentration (KL-factor), flame temperature
crank angle synchronized (high-speed) recording
high resolution (high-speed) cameras
engine adaptation including engine sealing sleeves

Advanced Image Analysis

EngineMaster inspex not only offers in-cylinder visualization. By implementing the powerful processing packages of LaVision’s DaVis software, quantitative information can be extracted from endoscopic images, such as fuel spray geometry data, flame propagation speed and soot temperature as well as concentration.
